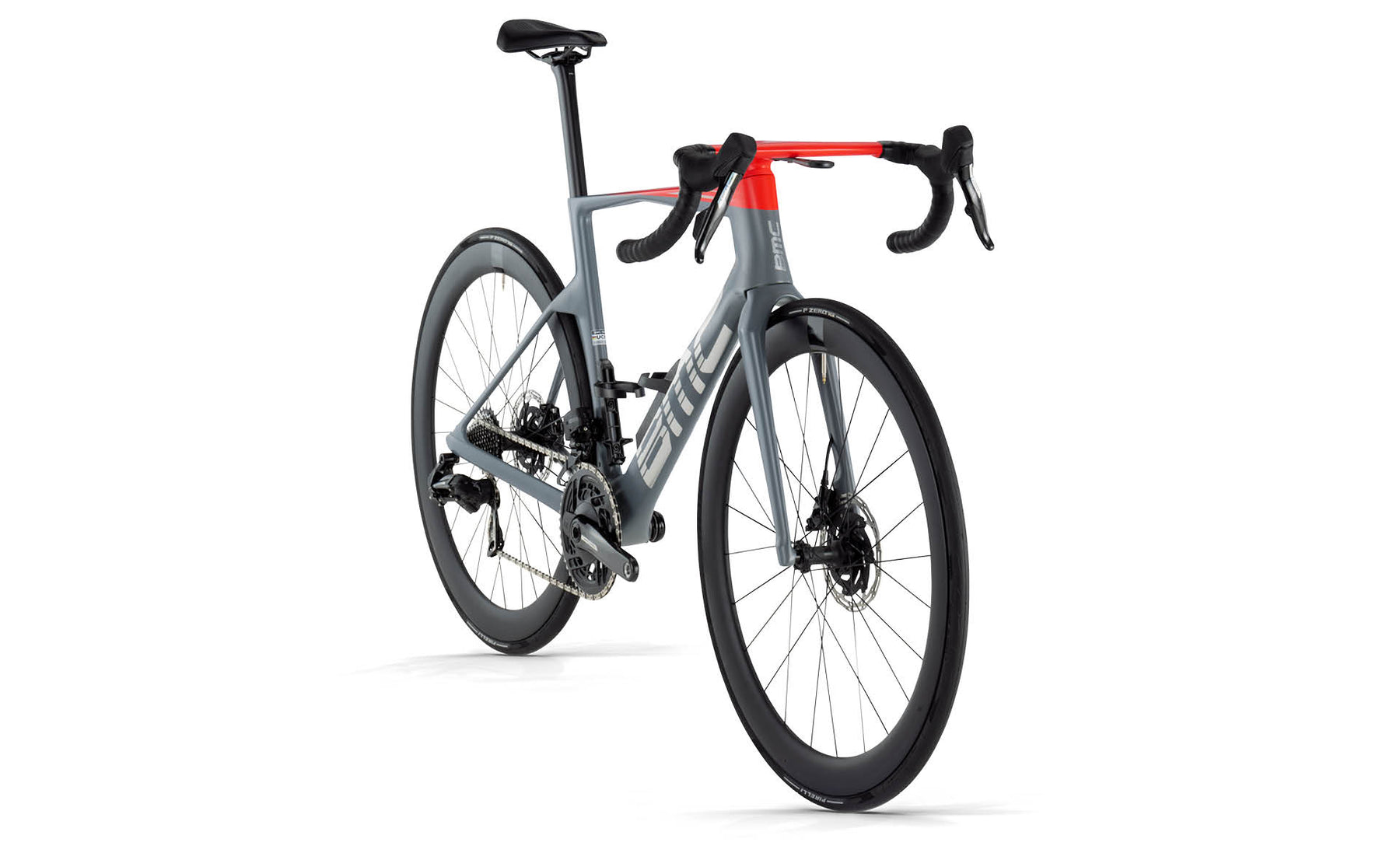

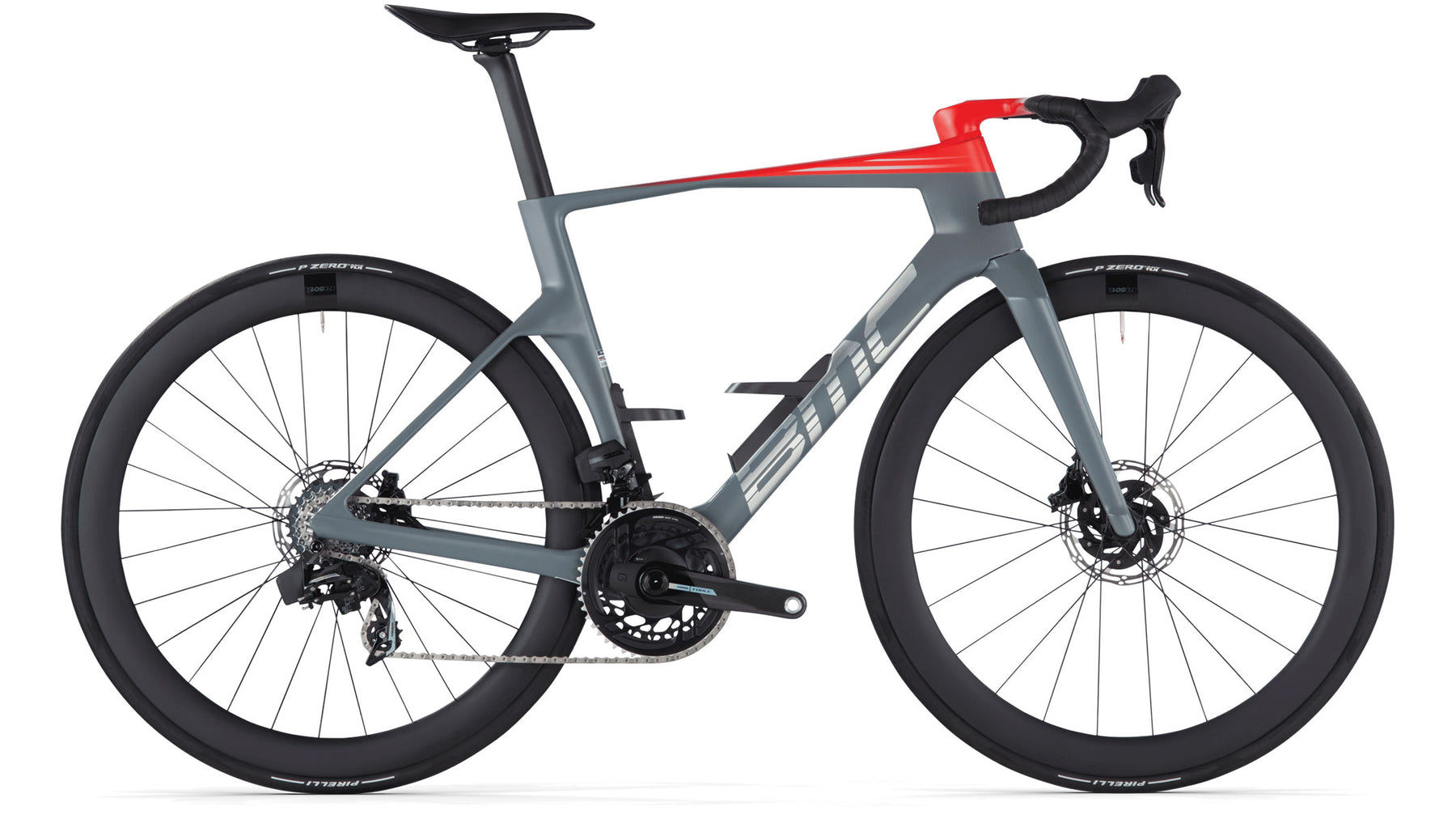

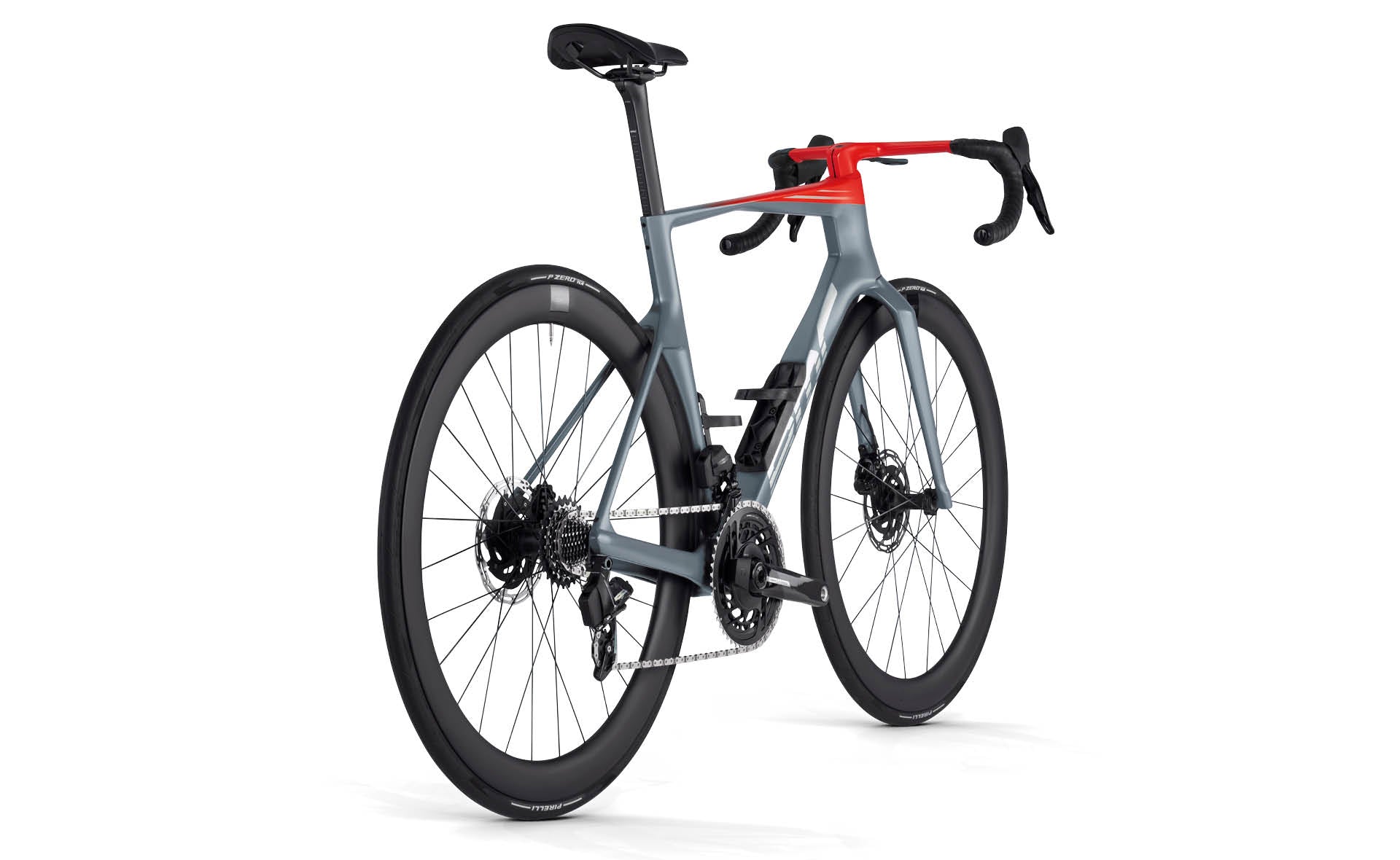

Teammachine R 01 THREE

IRON GREY / NEON RED

SRAM Force eTap AXS Drivetrain with Powermeter
CRD-501 SL Wheelset
ICS Carbon Aero Cockpit

Regular price$9,499.00
/

SKU: 30005503
Size
  • In stock, ready to ship
  • Inventory on the way

Teammachine R 01 THREE

Parts & Accessories

  • Shipped to your local bike shop
The all-new Teammachine R throws compromise out the window. Developed in collaboration with Red Bull Advanced Technologies, the Teammachine R redefines what a race bike is capable of. It does everything you ask of it when you need it most. Built with SRAM Force eTap AXS Drivetrain and powermeter, CRD-501 SL wheelset as well as BMC’s ICS Carbon Aero Cockpit.

Technology

Technical Overview

Frameset

Frame:
Teammachine R 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle

Fork:
Teammachine R 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle

Cockpit

Handlebar:
BMC ICS Carbon Aero | One-Piece Full Carbon Cockpitr

Seat

Seatpost:
Teammachine R 01 Premium Carbon Seatpost | 10mm Offset

Saddle:
Fizik Argo Vento R3 | 140mm

Drivetrain

Crankset:
SRAM Force

Chainrings:
48-35T

Power Meter:
SRAM Force Power Meter

Cassette:
SRAM Force XG-1270

Cassette Size:
10-28T

Chain:
SRAM Force

Front Derailleur:
SRAM Force eTap AXS

Rear Derailleur:
SRAM Force eTap AXS

Shifters:
SRAM Force eTap AXS

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SRAM Force eTap AXS

Rotors:
SRAM Centerline XR | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
CRD-501 SL Carbon | Tubeless Ready | 50mm

Hubs (F/R):
CRD-501 SL

Tires:
Pirelli P Zero Race TLR | 26mm

Tubeless Information:
Tubeless Ready Rims | Tubetype Tires

Accessories

Aerocore Bottle Cages

Additional Information

Tire Clearance:
30mm

Weight without Pedals:
7.5 Kg

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size 47 51 54 56 58 61
Rider Height <166 166-174 172-180 178-186 184-192 >190
Reach 368 378 387 393 402 409
Stack 504 528 548 563 582 608
Bar Reach 72.5 72.5 72.5 72.5 72.5 72.5
Bar Width 360/420 360/420 360/420 360/420 360/420 360/420
BB Drop 69 69 69 69 69 69
Crank Length 170 170 172.5 172.5 175 175
Fork Length 367 367 367 367 367 367
Fork Rake 48 48 43 43 43 43
Front Center 568 586 589 599 614 630
Head Tube 108 133 149 165 185 211
Head Tube Angle 71.5 71.5 72.3 72.3 72.3 72.3
Rear Center 410 410 410 410 410 410
Seat Angle 74 74 73.5 73.5 73 73
Seat Tube 418 463 499 519 541 570
Seatpost Length 335 335 385 385 405 405
Seatpost Offset 10 10 10 10 10 10
Stem Angle -15 -15 -15 -15 -15 -15
Stem Length 90 100 100 110 110 120
Top Tube 522 532 552 562 582 598
Trail 63 63 63 63 63 63
Wheelbase 968 986 989 999 1015 1030
