Name: Twostroke AL 24
Brand: BMC
SKU: 30002686
Price: 699.0 USD
Availability: OutOfStock

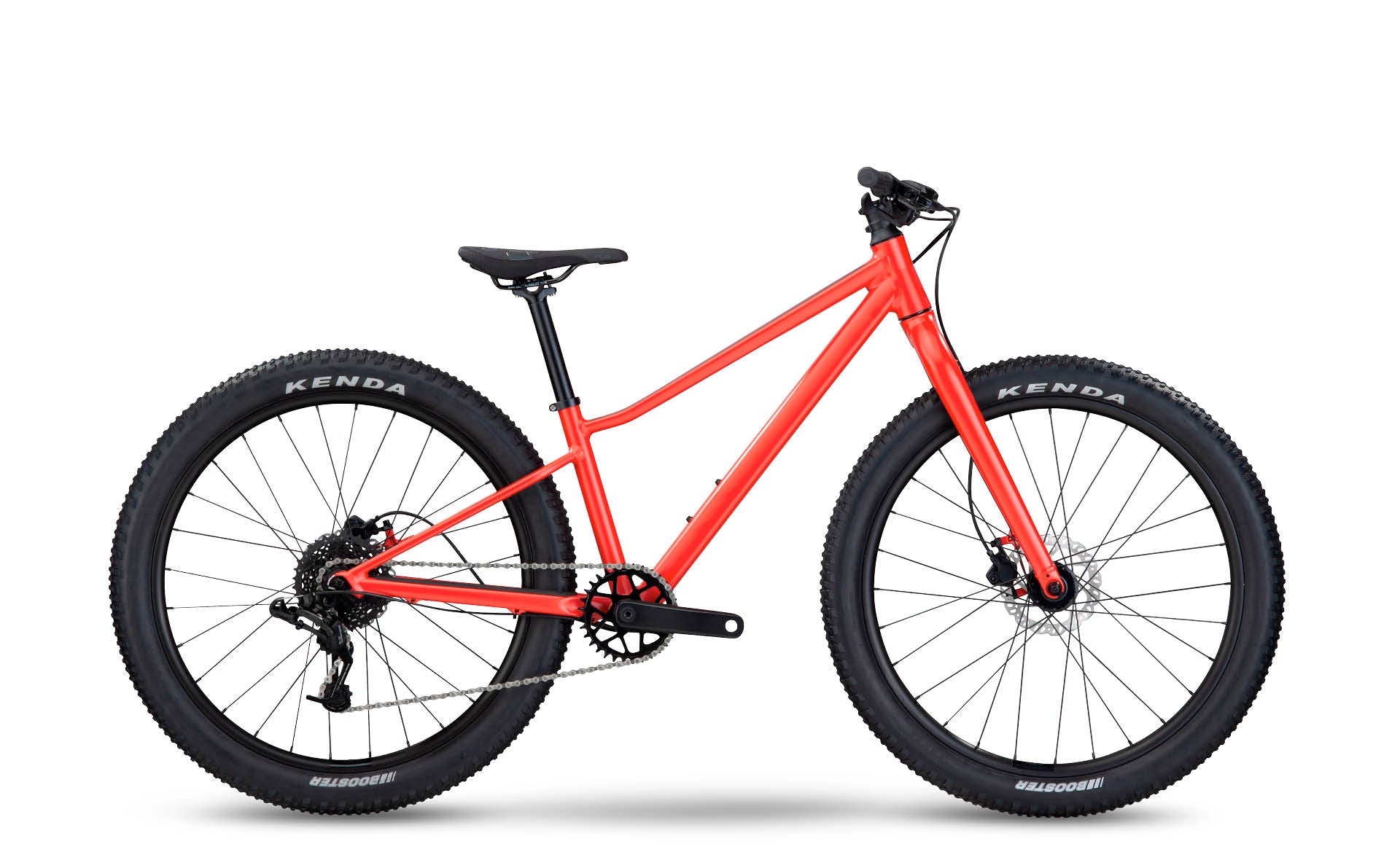

Twostroke AL 24 | BMC | bikes | Mountain, Mountain | Kids

Neon Red / Grey

24" Wheels, 6-11 Years, 120-145cm
Wide Range SRAM 1x8 Drivetrain, Ergonomic SDG Cockpit and Saddle
High-Volume Kenda Booster 2.4” Tires

USD 699.00

SKU: 30002686

Size —

24"

Shipped to your local bike shop

Check for availability within our Retailer Network.

A lightweight aluminium frame, with a premium durable powder coating and a dedicated geometry to smaller riders. Featuring 24” wheels, an 8-speed SRAM groupset and TEKTRO brakes, with tailored ergonomics for a confidence inspired ride. Simple. Functional. Fun.

Technology

Lightweight Frame

Double butted tubes for a lightweight frame with a distinctive and premium look.

Tailored Ergonomics

Bars, levers, cranks and saddle are tailored for the ergonomics of young riders for a comfortable and custom-made ride.

Dedicated Geometry

Inspired by our MTB’s and adapted to smaller riders for intuitive and reliable riding.

Powder Coat Finish

Powder coating is highly resistant to wear and reduces the impact on the environment with excess powder being reused rather than wasted: simply clever. A thin layer of gloss paint adds a premium finishing touch.

Technical Overview

Frameset

Frame:
Twostroke AL 20" Lightweight Aluminium with Powder Coat Finish | 1 1 / 8" Head Tube | 140mm Post Mount | 9 x 135mm QR

Fork:
Twostroke AL 24" Lightweight Aluminium with Powder Coat Finish | 140mm Post Mount | 9X100mm QR

Cockpit

Stem:
BMC | 35mm Length | 6° Angle

Handlebar:
SDG Slater Handlebar | 650mm Wide | 20mm Rise | 19mm Bar Ends | 31.8mm Clamp.

Seat

Seatpost:
Alloy | 27.2mm

Saddle:
SDG Fly Jr

Drivetrain

Crankset:
Lightweight Forged Alloy Cranks

Chainrings:
SRAMrings

Cassette:
Sunrace

Cassette Size:
11-34T

Chain:
SRAM

Rear Derailleur:
SRAM X4 | Medium Cage

Shifters:
SRAM X4 Trigger

Gears:
1 x 8

Bottom Bracket:
BSA Threaded Bottom Bracket

Brakes

Brake Levers / Calipers:
TEKTRO HD-M286 | Short Reach Levers

Rotors:
TEKTRO TR140-22

Rotor Size (F/R):
140mm

Wheels

Rims:
DD32

Hubs (F/R):
CNC Machined Alloy Hub Body | Sealed Bearings | Quick Release

Tires:
Kenda Booster | 24 x 2.4"

Additional Information

Tire Clearance:
58mm

ASTM Classification:
Level 3

System Weight Limit:
60kg

Size	24"
Rider Height	120-145
Reach	350
Stack	507
Bar Rise	20
Bar Sweep	5
Bar Width	650
BB Drop	40
Crank Length	140
Fork Length	412
Fork Rake	40
Front Center	538
Head Tube	105
Head Tube Angle	68
Rear Center	392
Seat Angle	73
Seat Tube	300
Seatpost Length	300
Seatpost Offset	15
Standover Height	580
Stem Angle	±6
Stem Length	35
Top Tube	505
Trail	82
Wheelbase	972
