Name: Teammachine SLR 02 Ultegra
Brand: BMC
SKU: BMC-15a-000059-s0480
Availability: OutOfStock

BMC Bikes | Teammachine SLR02 Ultegra RED

Color: Red
Model Year: 2015

BMC Archive Product

Compatible Parts & Accessories

Battery Adapter compliance post

USD 15.00 Out of Stock

Compliancepost 18mm

USD 59.00 Buy Now

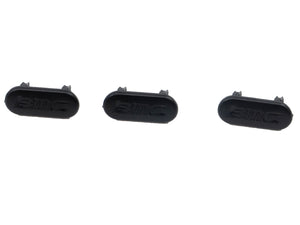

Di2 Kit - No 2

USD 9.00 Buy Now

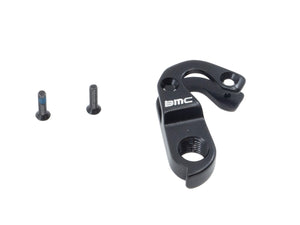

Dropout - No 42

USD 15.00 Buy Now

Expander - No 2

USD 15.00 Out of Stock

Headset VP B302AC

USD 39.00 Buy Now

[{"id":47383796711744,"title":"48","option1":"48","option2":null,"option3":null,"sku":"BMC-15a-000059-s0480","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR 02 Ultegra - 48","public_title":"48","options":["48"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47383796941120,"title":"51","option1":"51","option2":null,"option3":null,"sku":"BMC-15a-000059-s0510","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR 02 Ultegra - 51","public_title":"51","options":["51"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47383797203264,"title":"54","option1":"54","option2":null,"option3":null,"sku":"BMC-15a-000059-s0540","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR 02 Ultegra - 54","public_title":"54","options":["54"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47383797399872,"title":"57","option1":"57","option2":null,"option3":null,"sku":"BMC-15a-000059-s0570","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR 02 Ultegra - 57","public_title":"57","options":["57"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47383797662016,"title":"60","option1":"60","option2":null,"option3":null,"sku":"BMC-15a-000059-s0600","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR 02 Ultegra - 60","public_title":"60","options":["60"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
Teammachine SLR02 | ACE - carbon

Fork:
ACE | carbon

Cockpit

Handlebar:
BMC RDB 3

Stem:
BMC RST 3

Seat

Seatpost:
Teammachine SLR02 | carbon

Saddle:
Fizik Ardea manganese

Drivetrain

Gears:
22

Crankset:
Shimano Ultegra FC-6800 | 52-36T

Cassette:
Shimano Ultegra CS-6800 | 11-28

Chain:
Shimano Ultegra CN-6800

Front Derailleur:
Shimano Ultegra FD-6800

Rear Derailleur:
Shimano Ultegra RD-6800

Shifters:
Shimano Ultegra ST-6800

Brakes

Brake Levers / Calipers:
Shimano Ultegra BR-6800

Wheels

Rims:
Shimano WH-RS21

Hubs (F/R):
Shimano WH-RS21

Tires:
Continental Ultra Sport 2 | 700 x 23C | Folding

Additional Information

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	48	51	54	57	60
Rider Height	<164	164-172	170-177	175-182	180-188
Reach	370	378	387	394	405
Stack	506	530	550	572	601
Bar Drop	125	125	125	125	125
Bar Reach	70	70	70	70	70
Bar Width	420	420	420	440	440
BB Drop	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175
Fork Length	370	370	370	370	370
Fork Rake	41.6	41.6	41.6	41.6	41.6
Front Center	571	575	586	600	620
Head Tube	108	128	148	170	201
Head Tube Angle	70.5	72	72.5	72.5	72.5
Rear Center	402	402	402	402	402
Seat Angle	73.5	73.5	73.5	73.5	73.5
Seat Tube	475	505	535	565	600
Seatpost Length	350	350	350	350	350
Seatpost Offset	18	18	18	18	18
Stem Angle	+/- 6	+/- 6	+/- 6	+/- 6	+/- 6
Stem Length	90	100	110	120	130
Top Tube	520	535	550	564	583
Trail	76	66	63	63	63
Wheelbase	963	967	978	992	1012
