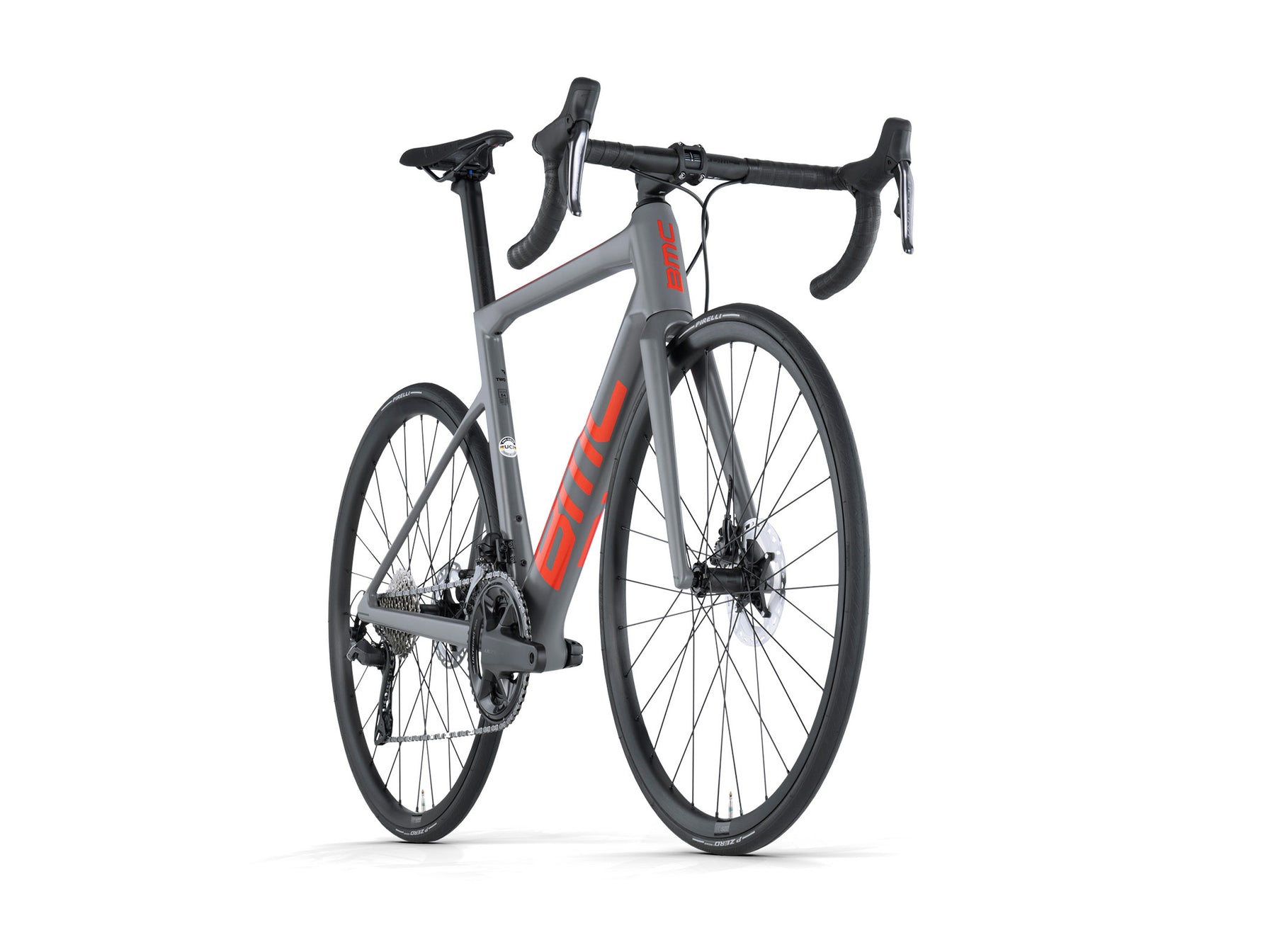

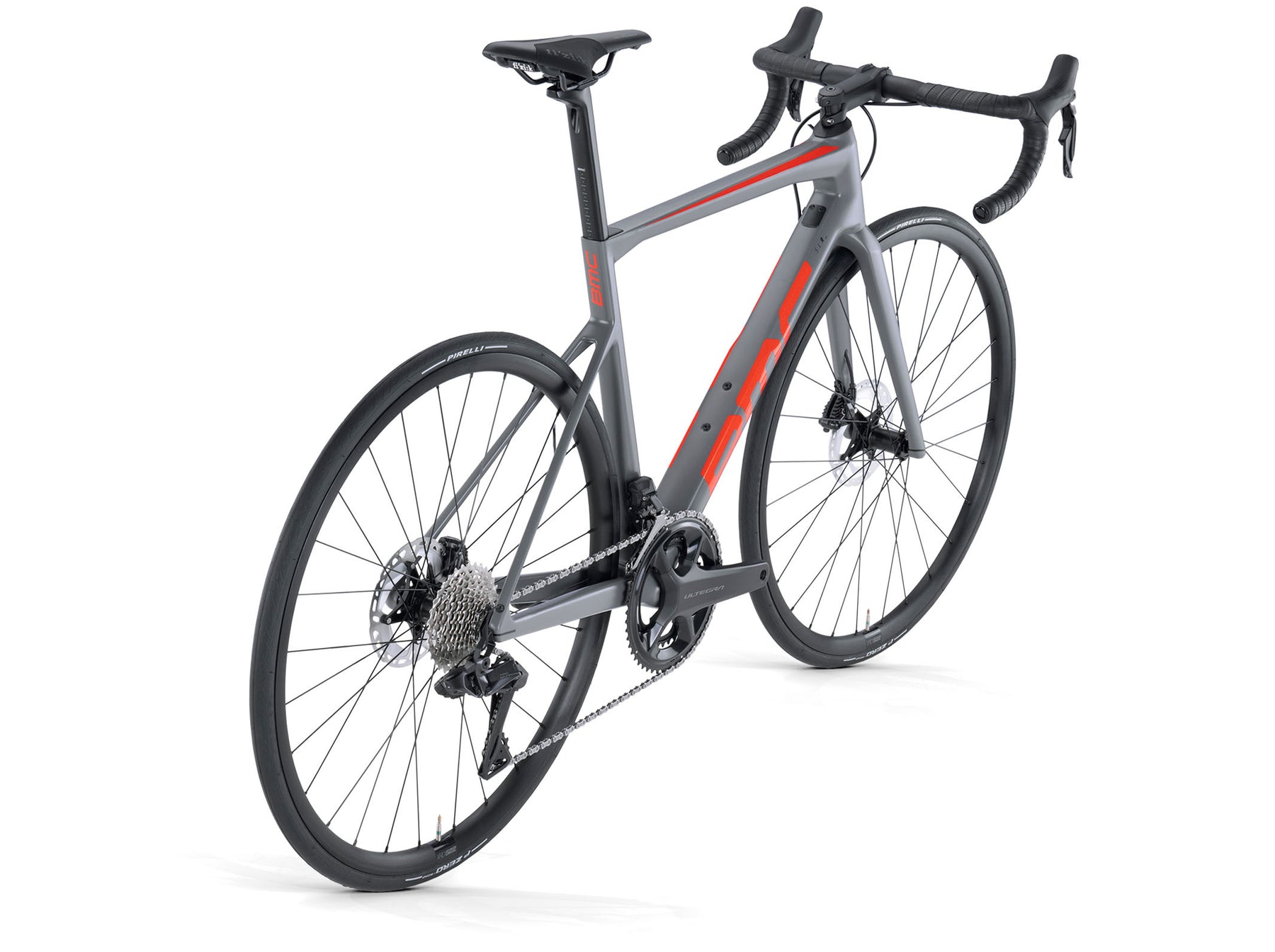

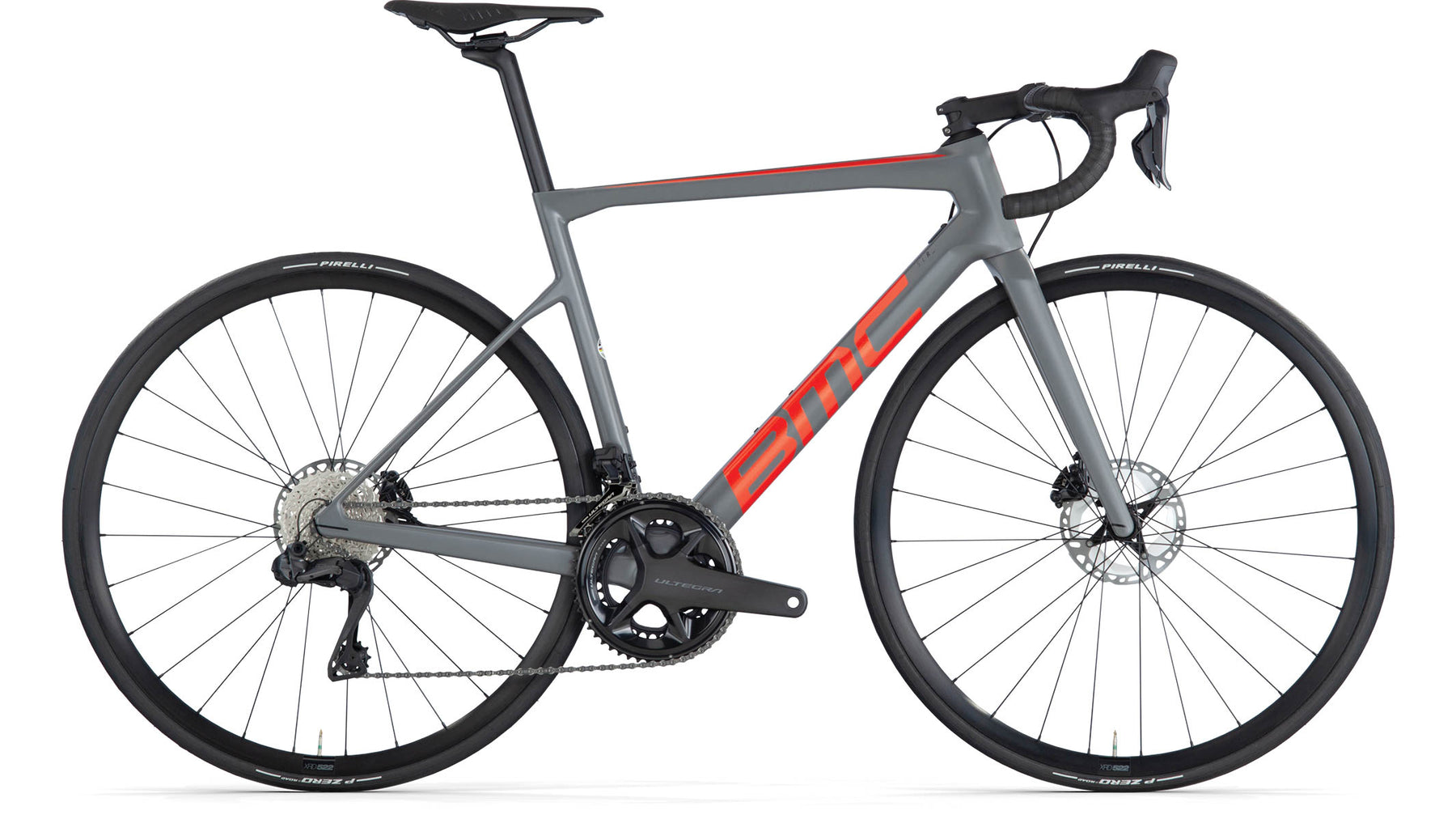

BMC Bikes | Teammachine SLR TWO IRON GREY / SPARKLING ORANGE

Teammachine SLR TWO

IRON GREY / SPARKLING ORANGE

SHIMANO Ultegra Di2 Drivetrain
XRD-522 Wheelset
Integrated Cable Routing and Carbon D-Shape Seatpost

Regular price$5,499.00
/

SKU: 30005755
Size
  • In stock, ready to ship
  • Inventory on the way

Teammachine SLR TWO

Parts & Accessories

The legendary performance of the Teammachine SLR in a widely accessible package. Designed with TCC Race technology built into the Teammachine SLR Carbon frame and fork as well as Stealth Dropouts and internal cable routing, this road bike understands the meaning of high performance. Equipped with Shimano Ultegra Di2 12-speed, the Teammachine SLR TWO represents great value, with XRD-522 tubeless-ready wheels and a conventional aluminium bar and stem completing the build.

Technology

Technical Overview

Frameset

Frame:
Teammachine SLR Carbon with Aerocore Design | Stealth Dropout Design | TCC Race Compliance Level | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle | Optimized for Aerocore Bottle Cages

Fork:
Teammachine SLR Carbon | TCC Race Compliance Level | Internal Cable Routing | Flat Mount Disc | Stealth Dropout Design | 12x100mm Thru-Axle

Cockpit

Handlebar:
BMC RAB 02 - Ergo Top Shape - Compact Bend

Stem:
BMC RSM01

Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Vento Argo R5 - 140mm

Drivetrain

Gears:
2x12

Crankset:
SHIMANO Ultegra FC-R8100 12spd 52-36T

Cassette:
SHIMANO Ultegra CS-R8100 12spd 11-34T

Chain:
SHIMANO Ultegra CN-M8100 12spd

Front Derailleur:
SHIMANO Ultegra Di2 FD-R8150 12spd

Rear Derailleur:
SHIMANO Ultegra Di2 RD-R8150 12spd

Shifters:
SHIMANO Ultegra Di2 ST-R8170 12spd

Brakes

Brake Levers / Calipers:
SHIMANO Ultegra BR-R8170

Rotors:
SHIMANO RT-MT800 160 / 160 mm - Centerlock

Wheels

Rims:
XRD-522 - Tubeless Ready - 25 mm

Hubs (F/R):
XRD-522

Tires:
Pirelli P-Zero Road, 26mm

Tubeless Information:
Tubeless Ready Rims / Tubetype Tires

Additional Information

Tire Clearance:
30mm (Measured Width)

ASTM Classification:
Level 1

Weight Limit:
110 Kg

Size475154565861
Rider Height<166166-174172-180178-186184-192>190
Reach367377386392401409
Stack506530550565584608
Bar Drop125125125125125125
Bar Reach707070707070
Bar Rise
Bar Sweep
Bar Width400420420420420440
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop696969696969
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170170172.5172.5175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length368368368368368368
Fork Rake484843434343
Frame Size
Front Center568586589599614630
Front Center (SLACK)
Front Center (STEEP)
Head Tube110130145165184210
Head Tube Angle71.571.572.372.372.372.3
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center410410410410410410
Saddle Height Range
Seat Angle73.573.573.573.573.573.5
Seat Tube423468504524545574
Seatpost Drop
Seatpost Length330380380380380380
Seatpost Offset151515151515
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height717752779797817843
Stem Angle±8±8±8±8±8±8
Stem Length9090100110110120
Top Tube517534549559574589
Top Tube (SLACK)
Top Tube (STEEP)
Trail636363636363
Wheelbase968986989100010151030
Wheelbase (SLACK)
Wheelbase (STEEP)
