Name: Teammachine SLR FRS
Brand: BMC
SKU: 30002367
Price: 1759.0 USD
Availability: OutOfStock

Teammachine SLR FRS | BMC | frames | Road, Road | Racing

Prisma Red / Brushed Alloy

Carbon Frame and Fork
TCC Race Compliance
Integrated Cable Routing and Carbon D-Shape Seatpost

USD 2,199.00 USD 1,759.00

SKU: 30002367

Size —

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network.

[{"id":47329165771072,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30002367","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 47","public_title":"47","options":["47"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884166","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47329165836608,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30002368","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 51","public_title":"51","options":["51"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884159","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47329165967680,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30002369","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 54","public_title":"54","options":["54"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884142","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47329166098752,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30002370","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 56","public_title":"56","options":["56"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884234","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47329166229824,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30002371","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 58","public_title":"58","options":["58"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884326","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47329166426432,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30002372","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Teammachine SLR FRS - 61","public_title":"61","options":["61"],"price":175900,"weight":7500,"compare_at_price":219900,"inventory_management":"shopify","barcode":"7630027884319","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

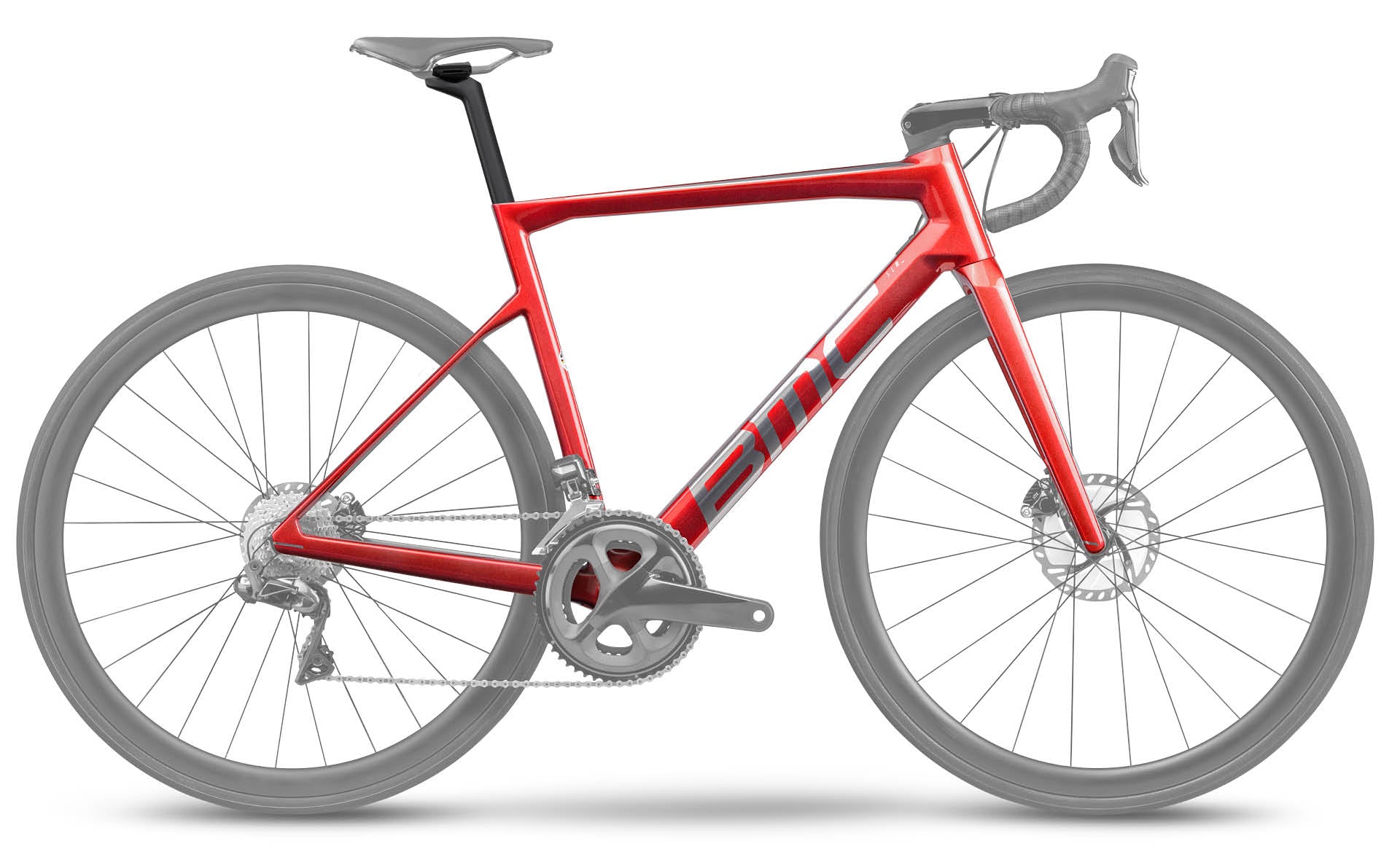

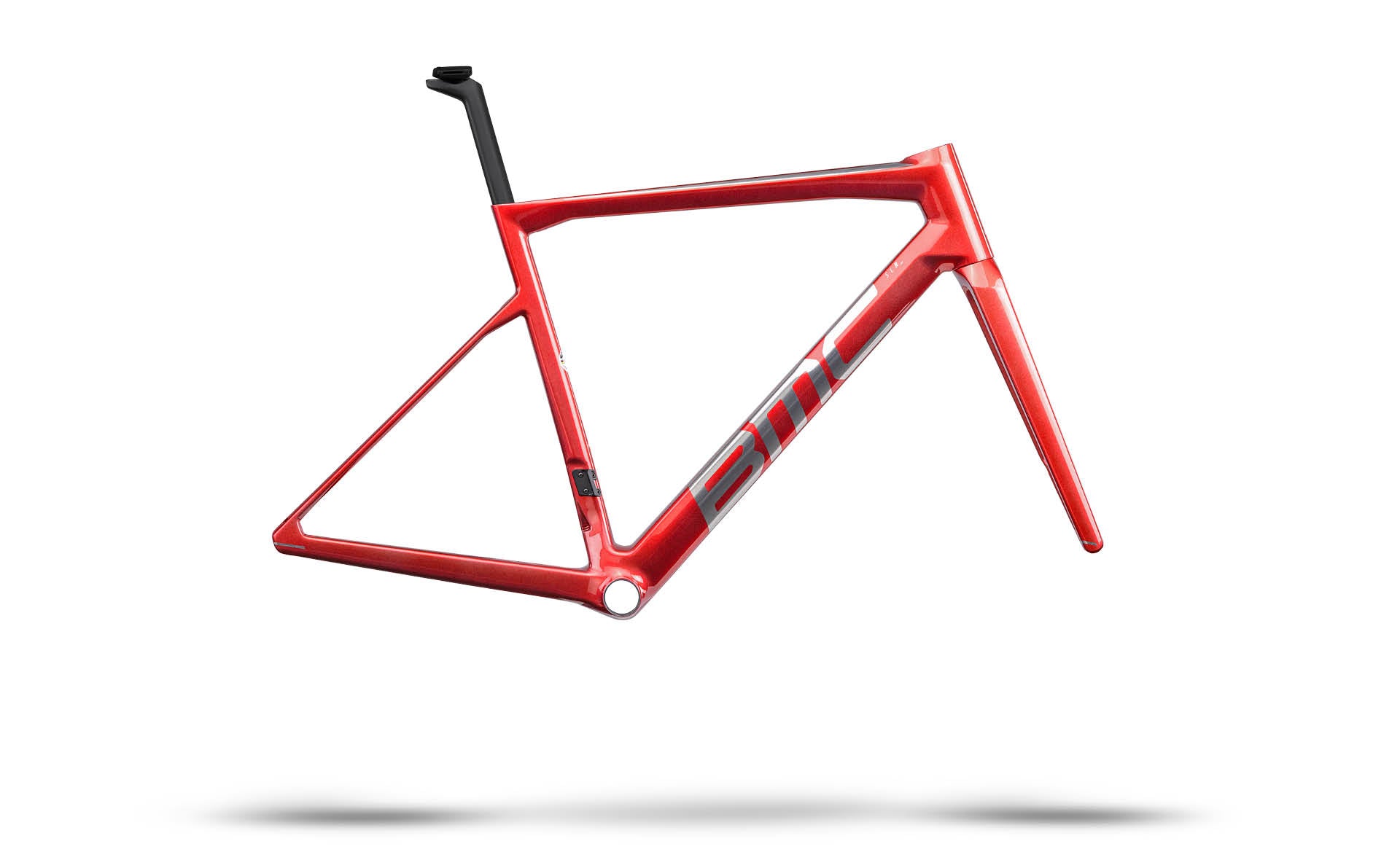

This Teammachine SLR Carbon frame and fork has been created with TCC Race technology, a D-Shape Carbon seatpost, Stealth Dropouts and comes ready to take internal cable routing. The platform of choice for those looking to benefit from this bike's proven performance while building their dream Teammachine.

Technology

Accelerated Composites Evolution Technology + (ACE+)

ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.

Aerocore Design

The superlight carbon cages seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles. Available as an ugrade on the Teammachine SLR line.

D-Shape Seatpost

The latest evolution of our signature D-Shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.

Comfort Is Speed

The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology.

Technical Overview

Frameset

Seat

Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost

Additional Information

Tire Clearance:
30mm

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	367	377	386	392	401	409
Stack	506	530	550	565	584	608
BB Drop	69	69	69	69	69	69
Fork Length	368	368	368	368	368	368
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	110	130	145	165	184	210
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	423	468	504	524	545	574
Seatpost Length	330	380	380	380	380	380
Seatpost Offset	15	15	15	15	15	15
Standover Height	717	752	779	797	817	843
Top Tube	517	534	549	559	574	589
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	1000	1015	1030

ICS Technical Manual
User Manual for Teammachine SLR
