Name: Teammachine SLR FOUR
Brand: BMC
SKU: 30005761
Price: 4199.0 USD
Availability: InStock

Teammachine SLR FOUR | BMC | bikes | Road, Road | Racing

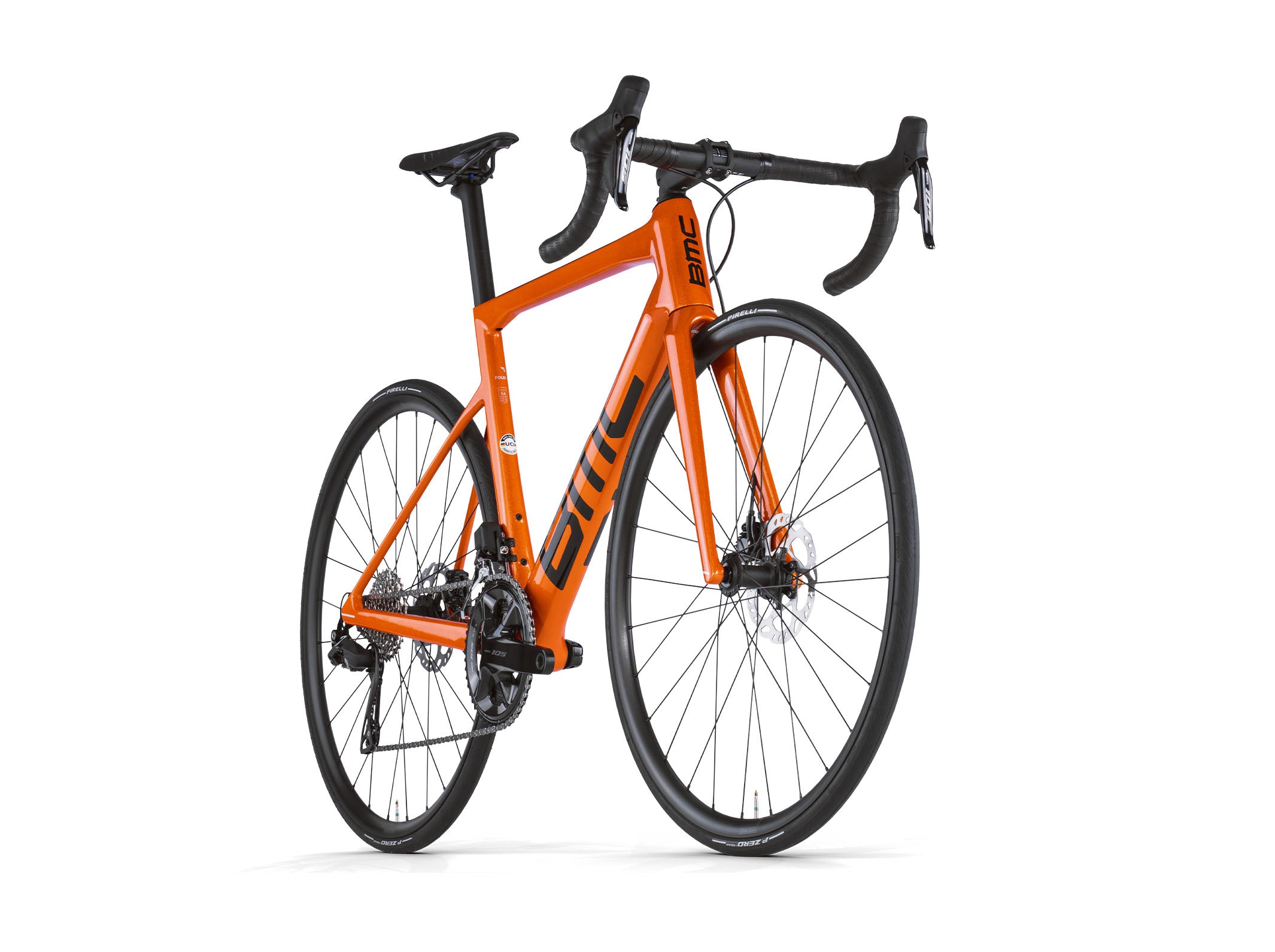

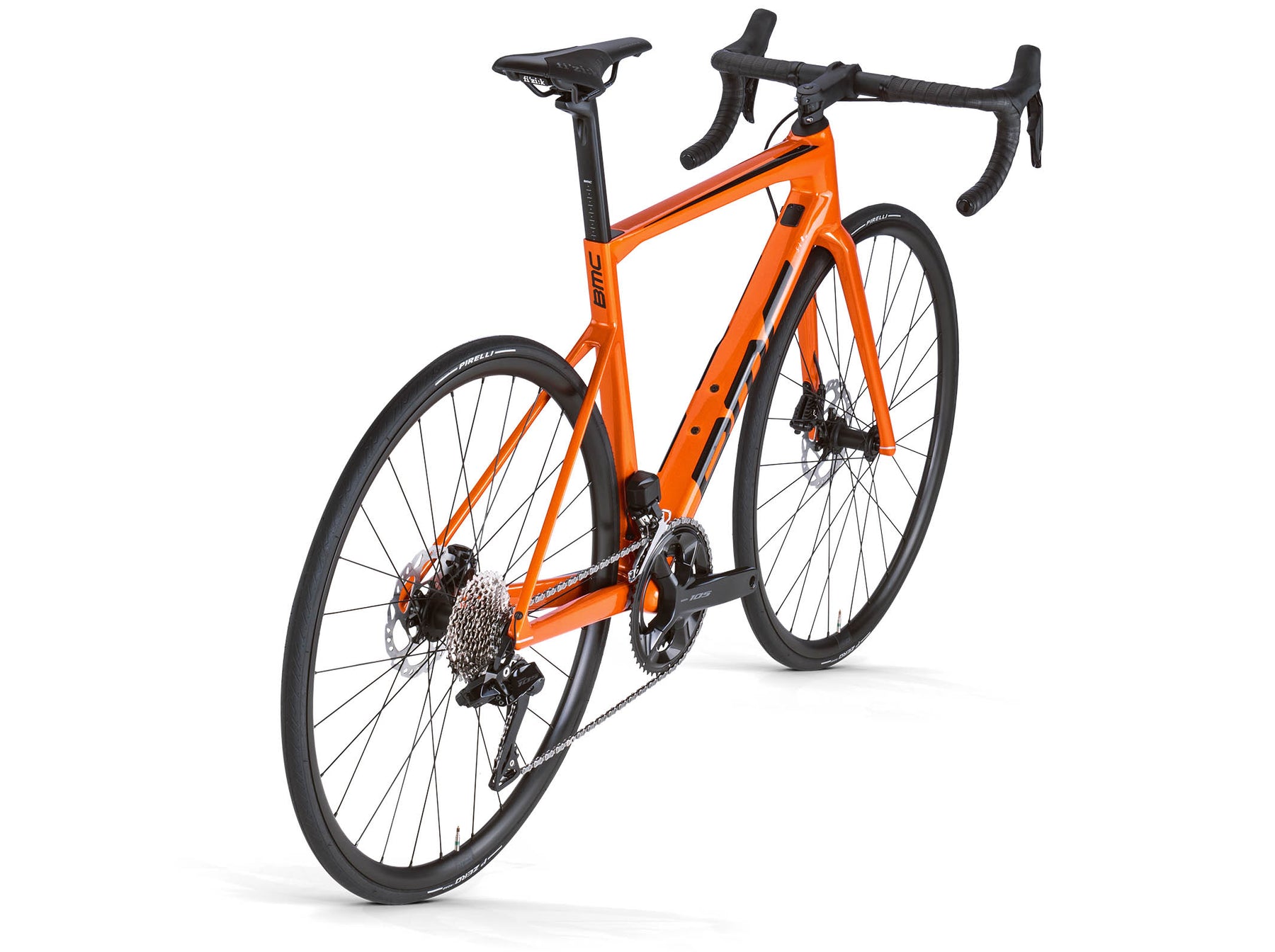

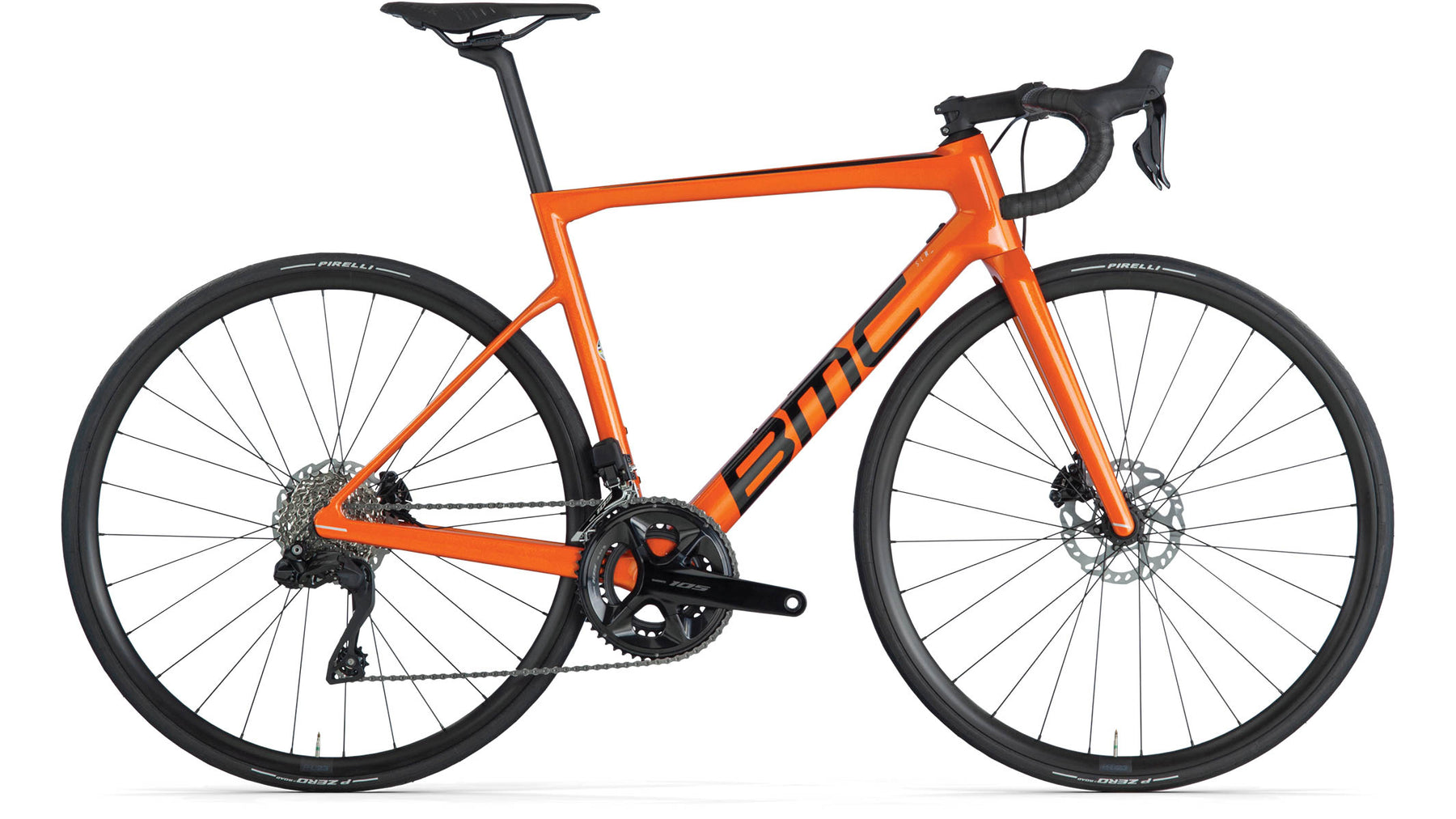

Sparkling Orange / Black

SHIMANO 105 Di2 Drivetrain
PRD23 Wheels
Integrated Cable Routing and Carbon D-Shape Seatpost

USD 4,199.00

SKU: 30005761

Size —

Low stock - 2 items left
Inventory on the way

Compatible Parts & Accessories

Shipped to your local bike shop

Check for availability within our Retailer Network.

[{"id":47340401393984,"title":"47","option1":"47","option2":null,"option3":null,"sku":"30005761","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 47","public_title":"47","options":["47"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511565","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340402344256,"title":"51","option1":"51","option2":null,"option3":null,"sku":"30005762","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 51","public_title":"51","options":["51"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511558","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340402606400,"title":"54","option1":"54","option2":null,"option3":null,"sku":"30005763","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 54","public_title":"54","options":["54"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511541","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340402803008,"title":"56","option1":"56","option2":null,"option3":null,"sku":"30005764","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 56","public_title":"56","options":["56"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511534","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340403032384,"title":"58","option1":"58","option2":null,"option3":null,"sku":"30005765","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 58","public_title":"58","options":["58"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511527","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47340403360064,"title":"61","option1":"61","option2":null,"option3":null,"sku":"30005766","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Teammachine SLR FOUR - 61","public_title":"61","options":["61"],"price":419900,"weight":15000,"compare_at_price":null,"inventory_management":"shopify","barcode":"7630906511510","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Watch Now

The Teammachine SLR, legendary performance in a widely accessible package. Its Teammachine SLR Carbon frame and fork have been designed using TCC Race Technology, offers Stealth Dropouts and internal cable routing. Introducing the carbon Teammachine SLR range, the Teammachine SLR FOUR has a Shimano 105 Di2 groupset with PRD23 wheelset and a compact drop bar.

Technology

Accelerated Composites Evolution Technology + (ACE+)

ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.

Aerocore Design

The superlight carbon cages seamlessly integrate with the reshaped down tube and seat tube, resulting in significant drag reduction when used with bottles. Available as an ugrade on the Teammachine SLR line.

D-Shape Seatpost

The latest evolution of our signature D-Shape seatpost: this optimized design features the minimalist saddle clamp, resulting in lower weight; while still retaining excellent aerodynamic performance and compliance.

Comfort Is Speed

The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology.

Technical Overview

Frameset

Cockpit

Stem:
BMC RSM 01

Handlebar:
BMC RAB 02 | Ergo Top Shape | Compact Bend

Seat

Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost | 15mm Offset

Saddle:
Fizik Antares R7

Drivetrain

Crankset:
SHIMANO 105 (FC-R7100)

Chainrings:
50-34T

Cassette:
SHIMANO 105 (CS-R7101)

Cassette Size:
11-34T

Chain:
SHIMANO CN-M6100

Front Derailleur:
SHIMANO 105 Di2 (FD-R7150)

Rear Derailleur:
SHIMANO 105 Di2 (RD-R7150)

Shifters:
SHIMANO 105 Di2 (ST-R7170)

Gears:
2 x 12

Bottom Bracket:
PF86 Bottom Bracket

Brakes

Brake Levers / Calipers:
SHIMANO 105 (BR-R7170)

Rotors:
SHIMANO SM-RT70 | Centerlock

Rotor Size (F/R):
160 / 160mm

Wheels

Rims:
PRD23 | 23mm

Hubs (F/R):
CL-712 (F) | RXC-1425 (R) | Thru-Axle

Tires:
Pirelli P-Zero Road | 26mm

Additional Information

Tire Clearance:
30mm

ASTM Classification:
Level 1

System Weight Limit:
110kg

Size	47	51	54	56	58	61
Rider Height	<166	166-174	172-180	178-186	184-192	>190
Reach	367	377	386	392	401	409
Stack	506	530	550	565	584	608
Bar Drop	125	125	125	125	125	125
Bar Reach	70	70	70	70	70	70
Bar Width	400	420	420	420	420	440
BB Drop	69	69	69	69	69	69
Crank Length	170	170	172.5	172.5	175	175
Fork Length	368	368	368	368	368	368
Fork Rake	48	48	43	43	43	43
Front Center	568	586	589	599	614	630
Head Tube	110	130	145	165	184	210
Head Tube Angle	71.5	71.5	72.3	72.3	72.3	72.3
Rear Center	410	410	410	410	410	410
Seat Angle	73.5	73.5	73.5	73.5	73.5	73.5
Seat Tube	423	468	504	524	545	574
Seatpost Length	330	380	380	380	380	380
Seatpost Offset	15	15	15	15	15	15
Standover Height	717	752	779	797	817	843
Stem Angle	±8	±8	±8	±8	±8	±8
Stem Length	90	90	100	110	110	120
Top Tube	517	534	549	559	574	589
Trail	63	63	63	63	63	63
Wheelbase	968	986	989	1000	1015	1030
