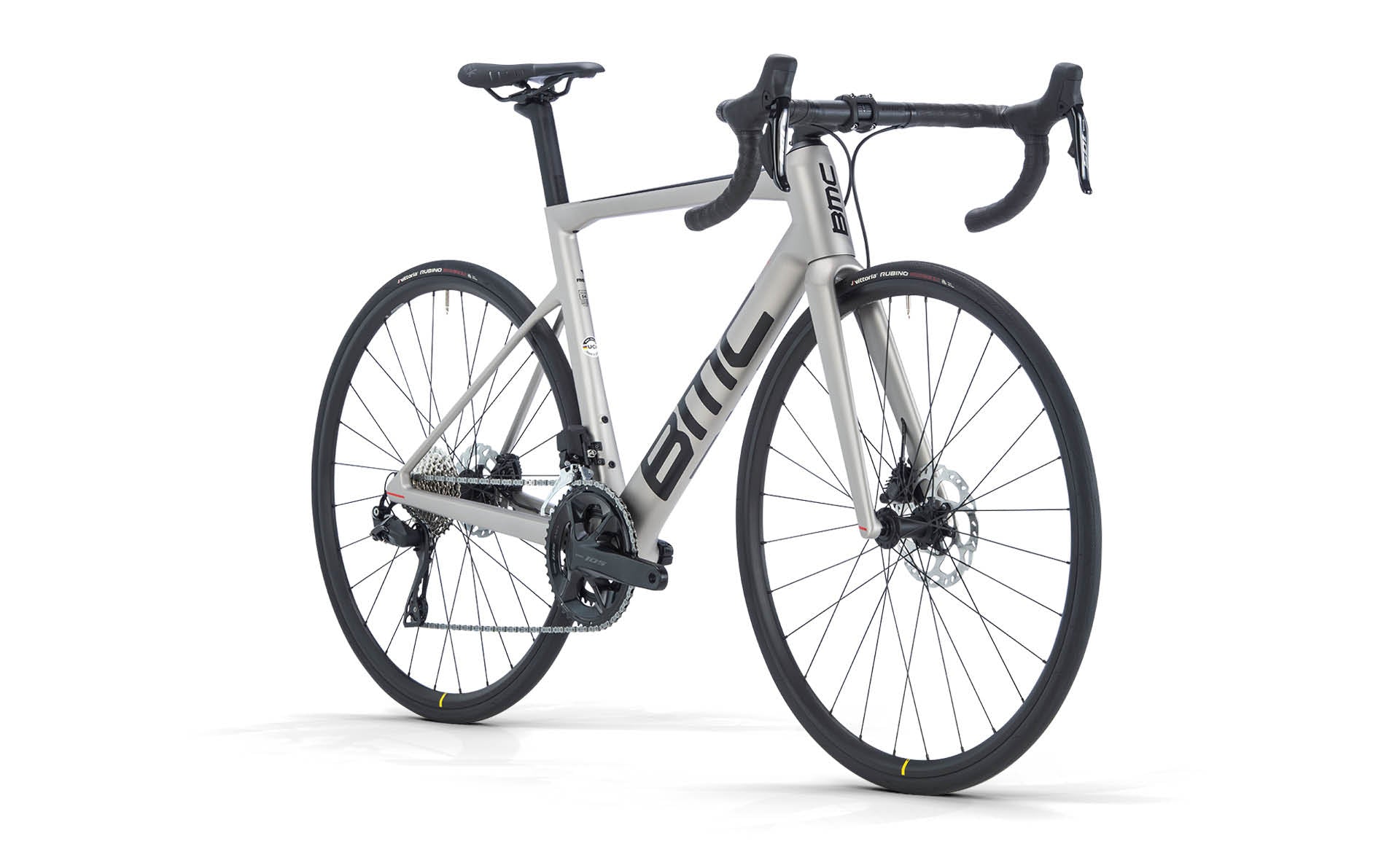

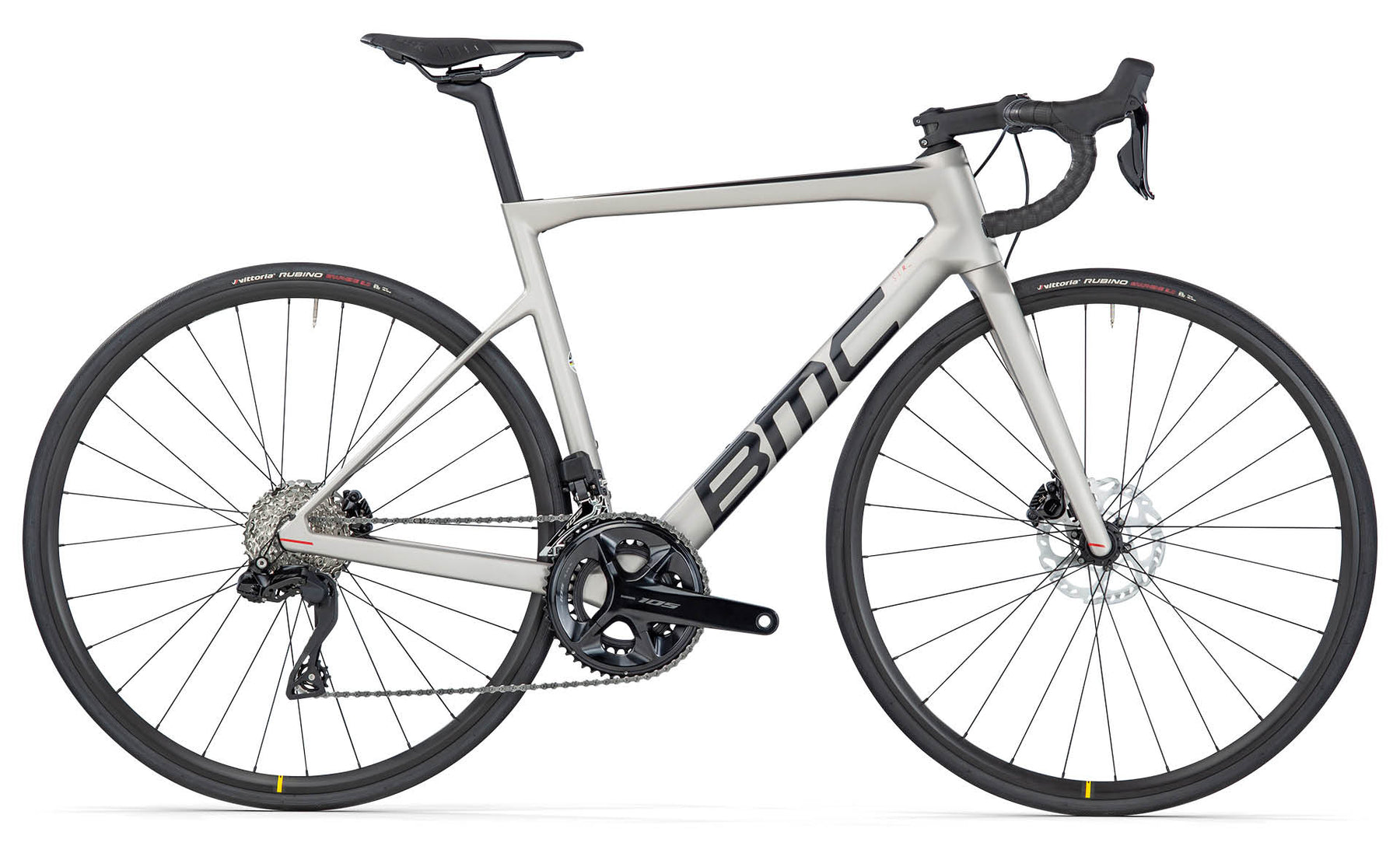

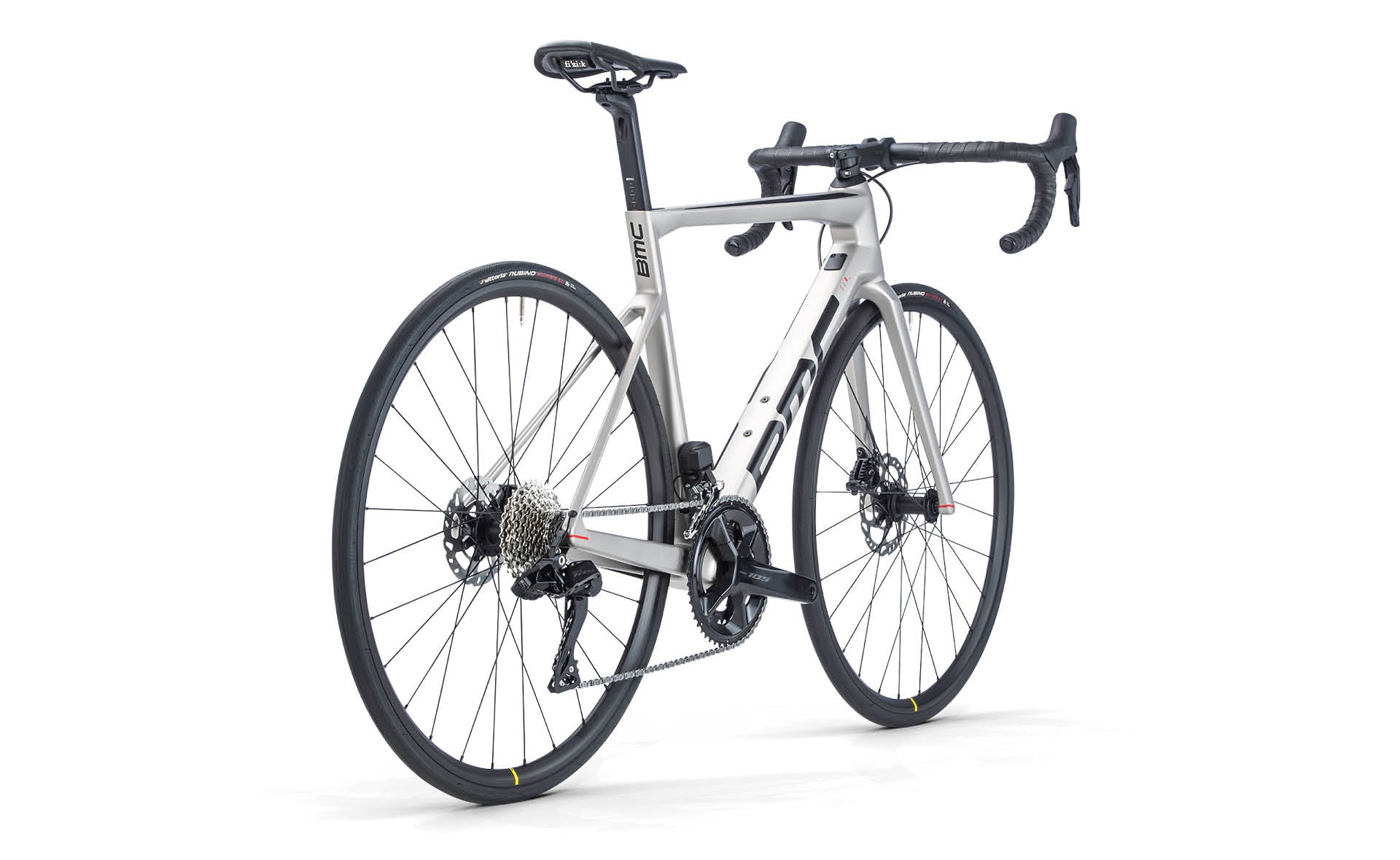

The legendary performance of the Teammachine SLR in a widely accessible package. Designed with TCC Race technology in the Teammachine SLR Carbon frame and fork as well as Stealth Dropouts and internal cable routing, this road bike understands the meaning of high performance. The Teammachine SLR Five is finished with electronic Shimano 105 Di2 shifting, a Mavic Open Disc wheelset, and our proprietary aluminium bar and stem for a stellar ride.
Technology
Accelerated Composites Evolution Technology + (ACE+)
Aerocore Design
D-Shape Seatpost
Comfort Is Speed
Technical Overview
Frameset
Frame:
Teammachine SLR Carbon with Aerocore Design | Stealth Dropout Design | TCC Race Compliance Level | PF86 Bottom Bracket | Flat Mount Disc | 12x142mm Thru-Axle | Optimized for Aerocore Bottle Cages
Fork:
Teammachine SLR Carbon | TCC Race Compliance Level | Internal Cable Routing | Flat Mount Disc | Stealth Dropout Design | 12x100mm Thru-Axle
Cockpit
Handlebar:
BMC RAB 03 - Ergo Top Shape - Compact Bend
Stem:
BMC RSM01
Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost
Saddle:
Fizik Antares R7
Seat
Seatpost:
Teammachine SLR Carbon D-Shaped Seatpost
Saddle:
Fizik Antares R7
Drivetrain
Gears:
2x12
Crankset:
SHIMANO 105 FC-R7100 50-34T
Cassette:
SHIMANO 105 CS-R7100 11-34T
Chain:
SHIMANO 105 CN-M6100 12spd
Front Derailleur:
SHIMANO 105 Di2 FD-R7150
Rear Derailleur:
SHIMANO 105 Di2 RD-R7150
Shifters:
SHIMANO 105 Di2 ST-R7170
Brakes
Brake Levers / Calipers:
SHIMANO 105 BR-R7170
Rotors:
SHIMANO SM-RT70 160 / 140mm
Wheels
Rims:
Mavic Open Disc
Hubs (F/R):
CL-712 (F) / RXC-142S (R) - Thru Axle
Tires:
Vittoria Rubino - 25mm
Tubeless Information:
Tubeless Ready Rims / Non-Tubeless Clincher Tire
Additional Information
Tire Clearance:
30mm (Measured Width)
ASTM Classification:
Level 1
Weight Limit:
110 Kg
| Size | 47 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Rider Height | <166 | 166-174 | 172-180 | 178-186 | 184-192 | >190 |
| Reach | 367 | 377 | 386 | 392 | 401 | 409 |
| Stack | 506 | 530 | 550 | 565 | 584 | 608 |
| Bar Drop | 125 | 125 | 125 | 125 | 125 | 125 |
| Bar Reach | 70 | 70 | 70 | 70 | 70 | 70 |
| Bar Rise | ||||||
| Bar Sweep | ||||||
| Bar Width | 400 | 420 | 420 | 420 | 420 | 440 |
| Base Bar Drop Flat Cockpit | ||||||
| Base Bar Drop V-Cockpit | ||||||
| Base Bar Reach Flat Cockpit | ||||||
| Base Bar Reach V-Cockpit | ||||||
| BB Drop | 69 | 69 | 69 | 69 | 69 | 69 |
| BB Drop (SLACK) | ||||||
| BB Drop (STEEP) | ||||||
| BB Height (SLACK) | ||||||
| BB Height (STEEP) | ||||||
| Chainstay | ||||||
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| LT | BB Drop (SLACK) | ||||||
| LT | BB Drop (STEEP) | ||||||
| LT | BB Height (SLACK) | ||||||
| LT | BB Height (STEEP) | ||||||
| LT | Chainstay | ||||||
| LT | Fork Length | ||||||
| LT | Fork Rake | ||||||
| LT | Frame Size | ||||||
| LT | Front Center (SLACK) | ||||||
| LT | Front Center (STEEP) | ||||||
| LT | Head Tube | ||||||
| LT | HT Angle (SLACK) | ||||||
| LT | HT Angle (STEEP) | ||||||
| LT | Reach (SLACK) | ||||||
| LT | Reach (STEEP) | ||||||
| LT | Rider Height | ||||||
| LT | Seat Tube | ||||||
| LT | ST Angle @750mm Saddle Height (SLACK) | ||||||
| LT | ST Angle @750mm Saddle Height (STEEP) | ||||||
| LT | ST Angle Actual (SLACK) | ||||||
| LT | ST Angle Actual (STEEP) | ||||||
| LT | ST Angle Effective (SLACK) | ||||||
| LT | ST Angle Effective (STEEP) | ||||||
| LT | Stack (SLACK) | ||||||
| LT | Stack (STEEP) | ||||||
| LT | Stand Over Height (80 in Front of BB) | ||||||
| LT | Stand Over Height (Lowest Point) | ||||||
| LT | Top Tube (SLACK) | ||||||
| LT | Top Tube (STEEP) | ||||||
| LT | Wheelbase (SLACK) | ||||||
| LT | Wheelbase (STEEP) | ||||||
| ST | BB Drop (SLACK) | ||||||
| ST | BB Drop (STEEP) | ||||||
| ST | BB Height (STACK) | ||||||
| ST | BB Height (STEEP) | ||||||
| ST | Chainstay | ||||||
| ST | Fork Length | ||||||
| ST | Fork Rake | ||||||
| ST | Frame Size | ||||||
| ST | Front Center (SLACK) | ||||||
| ST | Front Center (STEEP) | ||||||
| ST | Head Tube | ||||||
| ST | HT Angle (SLACK) | ||||||
| ST | HT Angle (STEEP) | ||||||
| ST | Reach (SLACK) | ||||||
| ST | Reach (STEEP) | ||||||
| ST | Rider Height | ||||||
| ST | Seat Tube | ||||||
| ST | ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST | ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST | ST Angle Actual (SLACK) | ||||||
| ST | ST Angle Actual (STEEP) | ||||||
| ST | ST Angle Effective (SLACK) | ||||||
| ST | ST Angle Effective (STEEP) | ||||||
| ST | Stack (SLACK) | ||||||
| ST | Stack (STEEP) | ||||||
| ST | Stand Over Height (80 in Front of BB) | ||||||
| ST | Stand Over Height (Lowest Point) | ||||||
| ST | Top Tube (SLACK) | ||||||
| ST | Top Tube (STEEP) | ||||||
| ST | Wheelbase (SLACK) | ||||||
| ST | Wheelbase (STEEP) | ||||||
| Fork Length | 368 | 368 | 368 | 368 | 368 | 368 |
| Fork Rake | 48 | 48 | 43 | 43 | 43 | 43 |
| Frame Size | ||||||
| Front Center | 568 | 586 | 589 | 599 | 614 | 630 |
| Front Center (SLACK) | ||||||
| Front Center (STEEP) | ||||||
| Head Tube | 110 | 130 | 145 | 165 | 184 | 210 |
| Head Tube Angle | 71.5 | 71.5 | 72.3 | 72.3 | 72.3 | 72.3 |
| HT Angle (SLACK) | ||||||
| HT Angle (STEEP) | ||||||
| Pad Reach Flat Cockpit | ||||||
| Pad Reach V-Cockpit | ||||||
| Pad Stack Flat Cockpit | ||||||
| Pad Stack V-Cockpit | ||||||
| Reach (SLACK) | ||||||
| Reach (STEEP) | ||||||
| Rear Center | 410 | 410 | 410 | 410 | 410 | 410 |
| Saddle Height Range | ||||||
| Seat Angle | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seat Tube | 423 | 468 | 504 | 524 | 545 | 574 |
| Seatpost Drop | ||||||
| Seatpost Length | 330 | 380 | 380 | 380 | 380 | 380 |
| Seatpost Offset | 15 | 15 | 15 | 15 | 15 | 15 |
| ST Angle @750mm Saddle Height (SLACK) | ||||||
| ST Angle @750mm Saddle Height (STEEP) | ||||||
| ST Angle Actual (SLACK) | ||||||
| ST Angle Actual (STEEP) | ||||||
| ST Angle Effective (SLACK) | ||||||
| ST Angle Effective (STEEP) | ||||||
| Stack (SLACK) | ||||||
| Stack (STEEP) | ||||||
| Stand Over Height (80 in Front of BB) | ||||||
| Stand Over Height (Lowest Point) | ||||||
| Standover Height | 717 | 752 | 779 | 797 | 817 | 843 |
| Stem Angle | ±8 | ±8 | ±8 | ±8 | ±8 | ±8 |
| Stem Length | 90 | 90 | 100 | 110 | 110 | 120 |
| Top Tube | 517 | 534 | 549 | 559 | 574 | 589 |
| Top Tube (SLACK) | ||||||
| Top Tube (STEEP) | ||||||
| Trail | 63 | 63 | 63 | 63 | 63 | 63 |
| Wheelbase | 968 | 986 | 989 | 1000 | 1015 | 1030 |
| Wheelbase (SLACK) | ||||||
| Wheelbase (STEEP) |
