Name: Pure PR01 Ultegra
Brand: BMC
SKU: BMC-12a-000030-s0480
Availability: OutOfStock

Color: White
Model Year: 2012

BMC Archive Product

Compatible Parts & Accessories

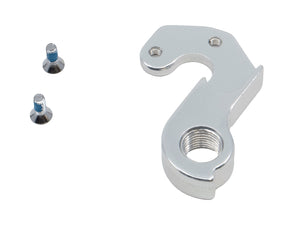

Dropout - No 25

USD 15.00 Out of Stock

[{"id":47379003867456,"title":"48","option1":"48","option2":null,"option3":null,"sku":"BMC-12a-000030-s0480","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pure PR01 Ultegra - 48","public_title":"48","options":["48"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47379004424512,"title":"51","option1":"51","option2":null,"option3":null,"sku":"BMC-12a-000030-s0510","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pure PR01 Ultegra - 51","public_title":"51","options":["51"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47379004981568,"title":"54","option1":"54","option2":null,"option3":null,"sku":"BMC-12a-000030-s0540","requires_shipping":true,"taxable":true,"featured_image":null,"available":false,"name":"Pure PR01 Ultegra - 54","public_title":"54","options":["54"],"price":0,"weight":0,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

Technical Overview

Frameset

Frame:
iSC | Carbon

Fork:
BMC SE48 SL TP

Cockpit

Handlebar:
Easton EA30

Stem:
Easton | EA70

Seatpost:
BMC carbon Airfoilpost

Saddle:
Fizik Vesta

Drivetrain

Crankset:
Shimano Ultegra | 50-34

Cassette:
Shimano Ultegra | 11-28

Front Derailleur:
Shimano Ultegra

Rear Derailleur:
Shimano Ultegra

Shifters:
Shimano Ultegra

Brakes

Brake Levers / Calipers:
Shimano Ultegra

Wheels

Rims:
DT Swiss R-1650 Tubeless

Hubs (F/R):
DT Swiss R-1650 Tubeless

Tires:
Continental Ultra Race

Additional Information

General Product Safety Regulation (GPSR):
Safety Instructions GPSR (EU)
Responsible person according to GPSR (EU)

Size	48	51	54
Rider Height	<166	166-174	172-180
Reach	369	382	389
Stack	508	515	545
Bar Width	400	400	400
BB Drop	69	69	69
Crank Length	170	170	170
Head Tube	115	120	145
Head Tube Angle	71	71.5	73
Rear Center	405	405	405
Seat Angle	73.5	73.5	73.5
Seat Tube	435	455	485
Top Tube	520	535	550
