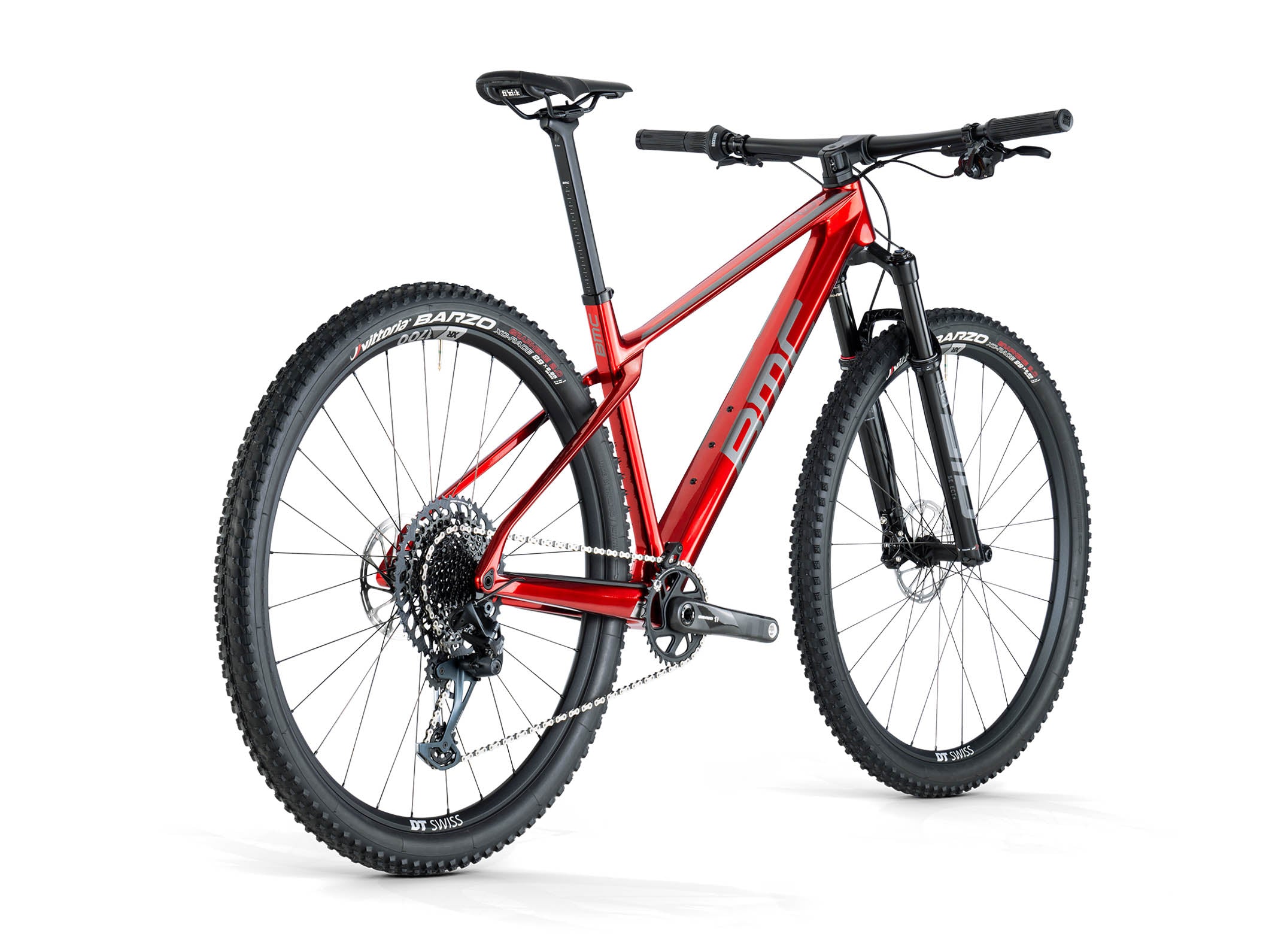

BMC Bikes | Twostroke 01 ONE METALLIC RED / DARK GREY

Twostroke 01 ONE

METALLIC RED / DARK GREY

Gruppo SRAM X01 Eagle mix
Rock Shox SID SL Select 3P forcella
Set ruote DT Swiss XR 1700

Prezzo di listino$4,999.00
/

SKU: 30005814
Misura
  • Magazzino basso, 3 articoli rimasti
  • Inventario in arrivo

Twostroke 01 ONE

Parti e accessori

La Twostroke 01 ONE es una rígida progresiva y cómoda que inspira confianza. Su cuadro de carbono incorpora el enfoque TCC y tiene una geometría radical para afrontar terrenos empinados y sueltos, un amplio paso de rueda, un tope de horquilla integrado y protección del cuadro, además de cableado interno y predisposición para montar una tija telescópica. Disfruta del manillar de carbono, la horquilla Rock Shox SID SL Select 3P y una mezcla del grupo SRAM X01 Eagle de 12 velocidades, todo ello sobre ruedas DT Swiss X 1700 y neumáticos Vittoria Barzo.

Tecnologia

Panoramica tecnica

Telaio

Telaio:
Twostroke 01 Premium Carbon with Tuned Compliance Concept XC | Fully Guided Internal Cable Routing | PF92 Bottom Bracket | Post Mount Disc | 12x148mm Boost Thru-Axle

Cockpit

Piega:
BMC MFB01 Carbon 760mm

Attacco Manubrio:
BMC MSM01

Reggisella:
Twostroke 01 Premium Carbon D-Shaped Seatpost | 0mm Offset

Sella:
Fizik Antares R7

Gruppo

Ingranaggi:
1x12

Guarnitura:
SRAM X1 Eagle DUB 34T

Cassetta:
SRAM CS-XG-1275-B1 10-52T

Catena:
SRAM GX Eagle

Deragliatore Posteriore:
SRAM X01 Eagle

Comandi:
SRAM GX Eagle Trigger

Sospensioni

Sospensione Anteriore:
Rock Shox SID SL Select 3P, 100 mm - TwistLoc Remote Lockout

Freni

Leve Freno / Pinze:
SRAM Level Silver Stealth

Rotori:
SRAM Centerline Rotors (160/160 S-M, 180/160 L-XL) - 6-Bolt

Ruote

Cerchi:
DT Swiss XR 1700 Wheelset, 25mm Inner Width

Mozzi:
DT Swiss 350 Straightpull, Ratchet 36 SL

Pneumatici:
Vittoria Barzo 2.25" Tubeless

Informazioni Tubeless:
Tubeless Ready Rims / Tubeless Tires

Informazioni aggiuntive

Distanza dai Pneumatici:
58mm (Measured Width)

Classificazione ASTM:
Level 3

Limite di Peso:
110 Kg

SizeSMLXL
Rider Height162-172170-180178-188>188
Reach422.5445465485
Stack588598608623
Bar Drop
Bar Reach
Bar Rise4444
Bar Sweep8888
Bar Width760760760760
Base Bar Drop Flat Cockpit
Base Bar Drop V-Cockpit
Base Bar Reach Flat Cockpit
Base Bar Reach V-Cockpit
BB Drop64646464
BB Drop (SLACK)
BB Drop (STEEP)
BB Height (SLACK)
BB Height (STEEP)
Chainstay
Crank Length170175175175
LT | BB Drop (SLACK)
LT | BB Drop (STEEP)
LT | BB Height (SLACK)
LT | BB Height (STEEP)
LT | Chainstay
LT | Fork Length
LT | Fork Rake
LT | Frame Size
LT | Front Center (SLACK)
LT | Front Center (STEEP)
LT | Head Tube
LT | HT Angle (SLACK)
LT | HT Angle (STEEP)
LT | Reach (SLACK)
LT | Reach (STEEP)
LT | Rider Height
LT | Seat Tube
LT | ST Angle @750mm Saddle Height (SLACK)
LT | ST Angle @750mm Saddle Height (STEEP)
LT | ST Angle Actual (SLACK)
LT | ST Angle Actual (STEEP)
LT | ST Angle Effective (SLACK)
LT | ST Angle Effective (STEEP)
LT | Stack (SLACK)
LT | Stack (STEEP)
LT | Stand Over Height (80 in Front of BB)
LT | Stand Over Height (Lowest Point)
LT | Top Tube (SLACK)
LT | Top Tube (STEEP)
LT | Wheelbase (SLACK)
LT | Wheelbase (STEEP)
ST | BB Drop (SLACK)
ST | BB Drop (STEEP)
ST | BB Height (STACK)
ST | BB Height (STEEP)
ST | Chainstay
ST | Fork Length
ST | Fork Rake
ST | Frame Size
ST | Front Center (SLACK)
ST | Front Center (STEEP)
ST | Head Tube
ST | HT Angle (SLACK)
ST | HT Angle (STEEP)
ST | Reach (SLACK)
ST | Reach (STEEP)
ST | Rider Height
ST | Seat Tube
ST | ST Angle @750mm Saddle Height (SLACK)
ST | ST Angle @750mm Saddle Height (STEEP)
ST | ST Angle Actual (SLACK)
ST | ST Angle Actual (STEEP)
ST | ST Angle Effective (SLACK)
ST | ST Angle Effective (STEEP)
ST | Stack (SLACK)
ST | Stack (STEEP)
ST | Stand Over Height (80 in Front of BB)
ST | Stand Over Height (Lowest Point)
ST | Top Tube (SLACK)
ST | Top Tube (STEEP)
ST | Wheelbase (SLACK)
ST | Wheelbase (STEEP)
Fork Length505505505505
Fork Rake44444444
Frame Size
Front Center694720744770
Front Center (SLACK)
Front Center (STEEP)
Head Tube8393.5106121
Head Tube Angle67676767
HT Angle (SLACK)
HT Angle (STEEP)
Pad Reach Flat Cockpit
Pad Reach V-Cockpit
Pad Stack Flat Cockpit
Pad Stack V-Cockpit
Reach (SLACK)
Reach (STEEP)
Rear Center425425425425
Saddle Height Range
Seat Angle75757575
Seat Tube415440470510
Seatpost Drop
Seatpost Length380430430430
Seatpost Offset
ST Angle @750mm Saddle Height (SLACK)
ST Angle @750mm Saddle Height (STEEP)
ST Angle Actual (SLACK)
ST Angle Actual (STEEP)
ST Angle Effective (SLACK)
ST Angle Effective (STEEP)
Stack (SLACK)
Stack (STEEP)
Stand Over Height (80 in Front of BB)
Stand Over Height (Lowest Point)
Standover Height725730735750
Stem Angle-5-5-5-5
Stem Length50606070
Top Tube597618638658
Top Tube (SLACK)
Top Tube (STEEP)
Trail109109109109
Wheelbase1112.5113511611185
Wheelbase (SLACK)
Wheelbase (STEEP)
